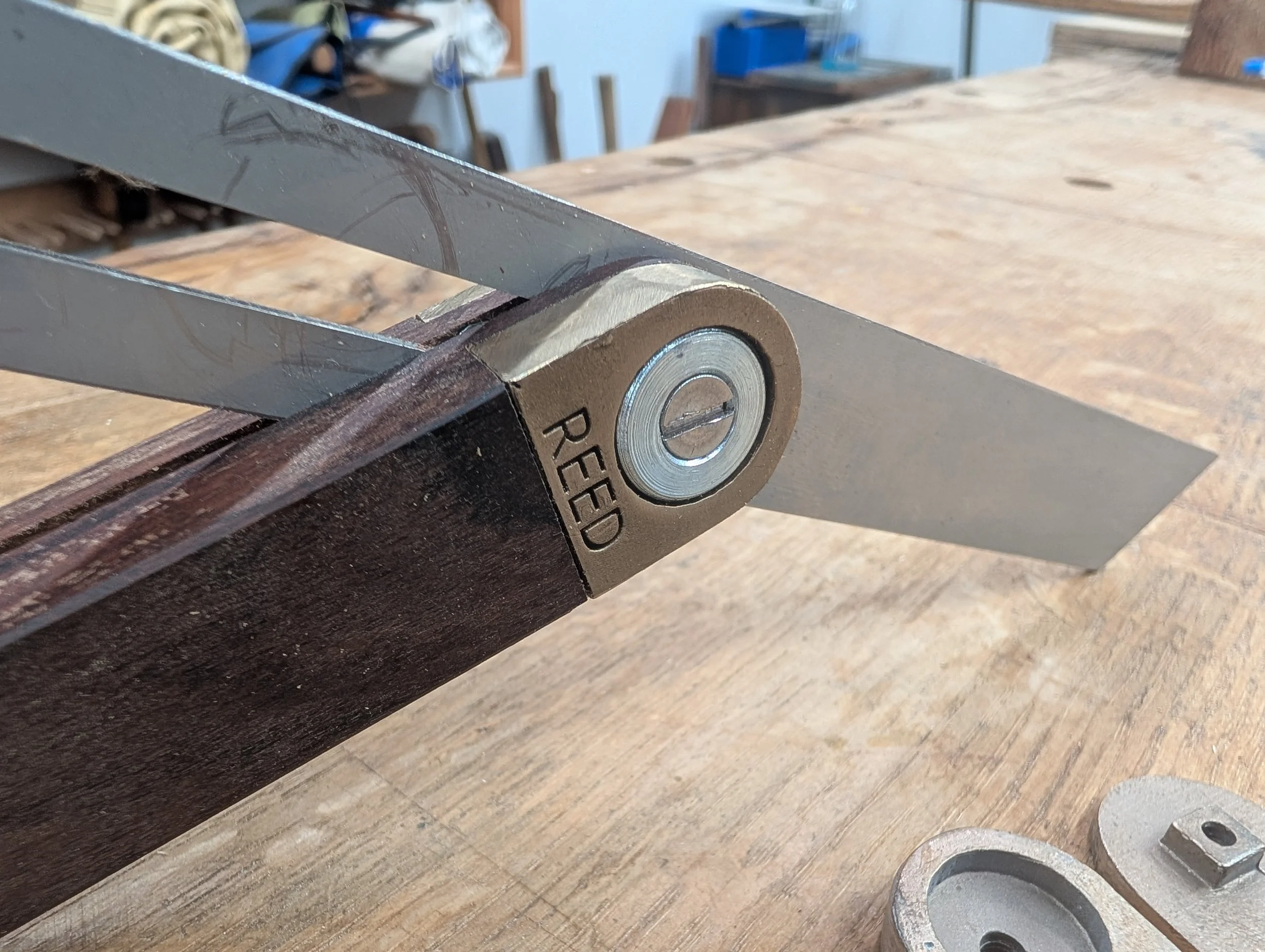

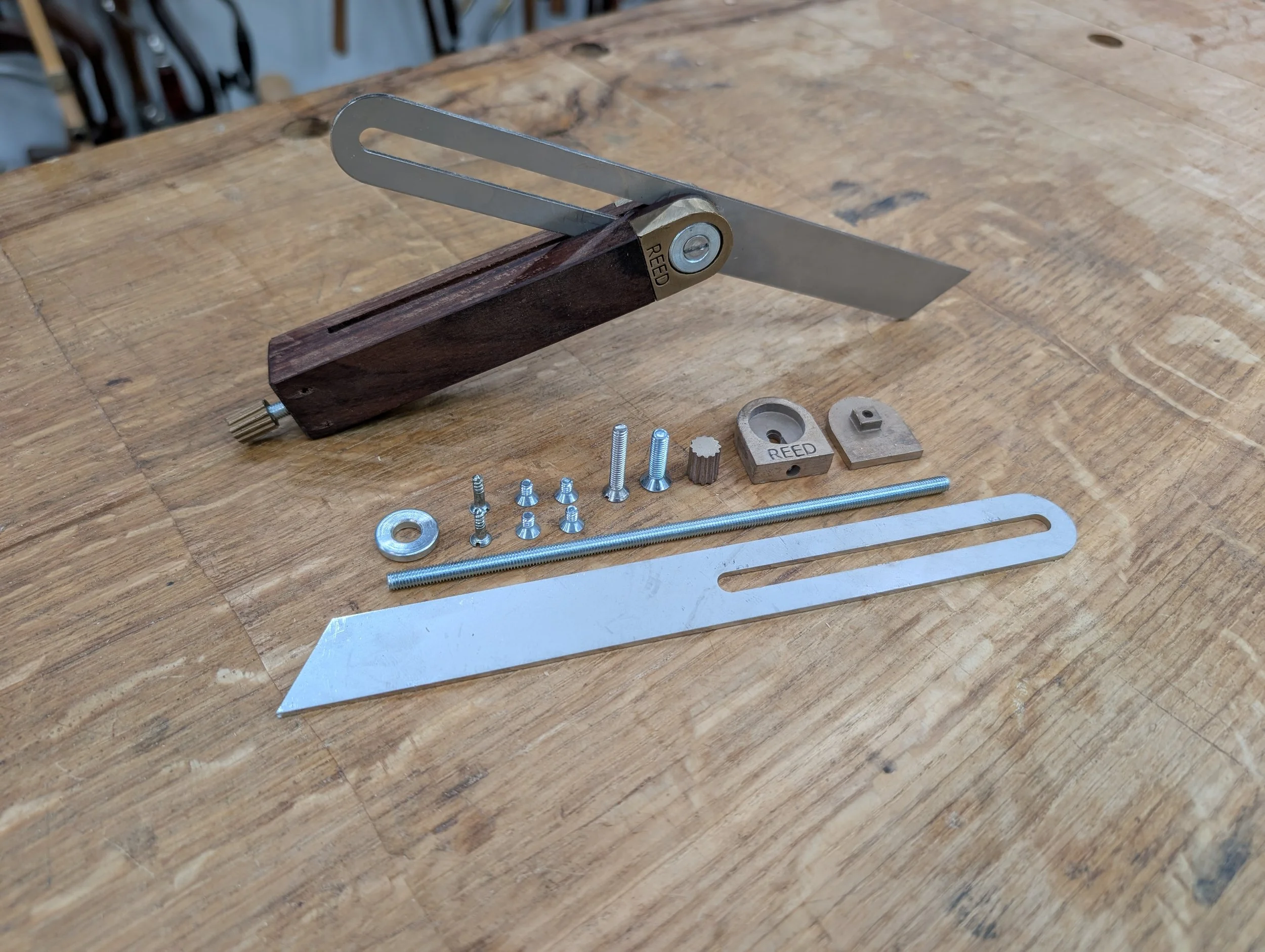

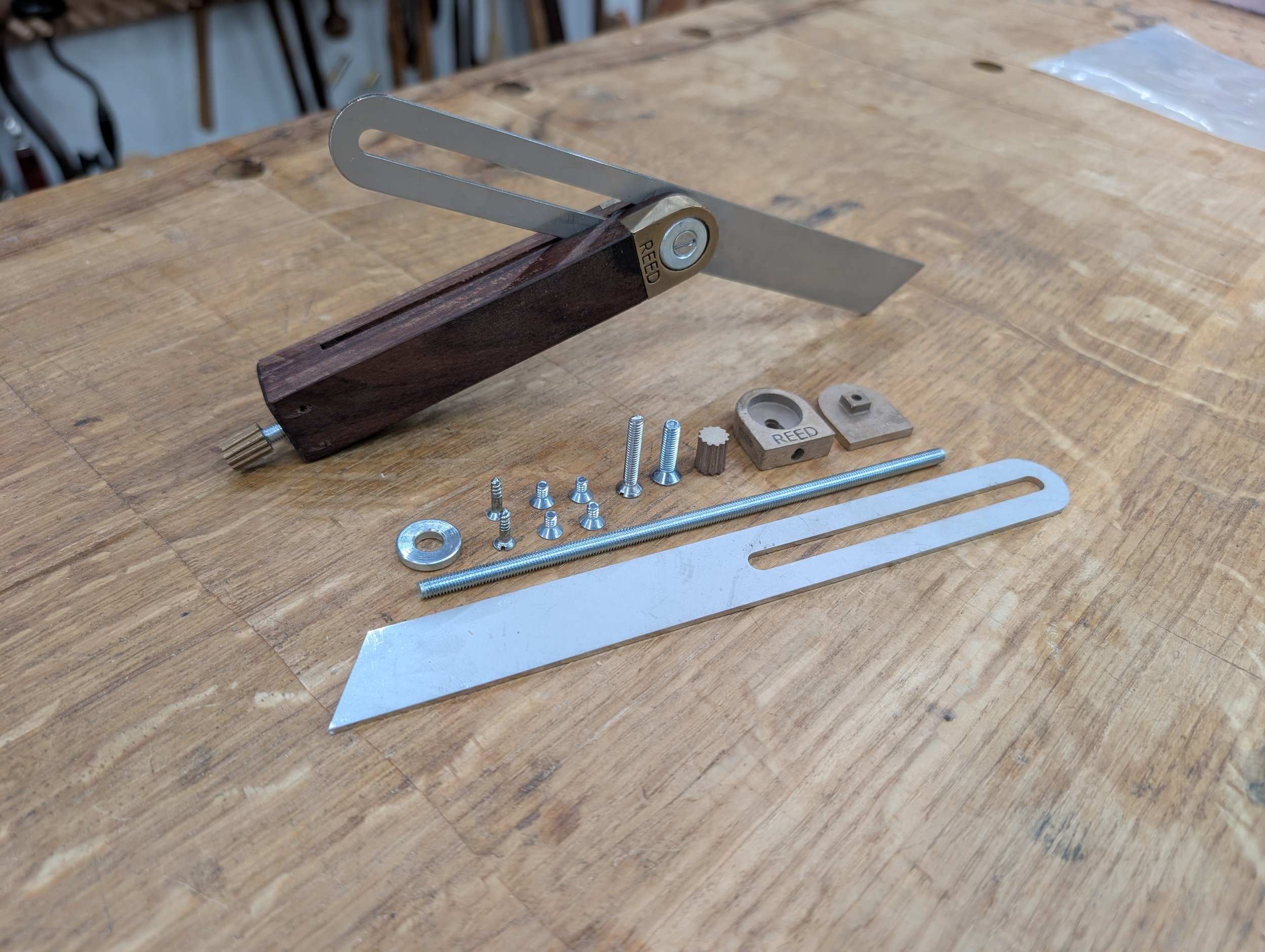

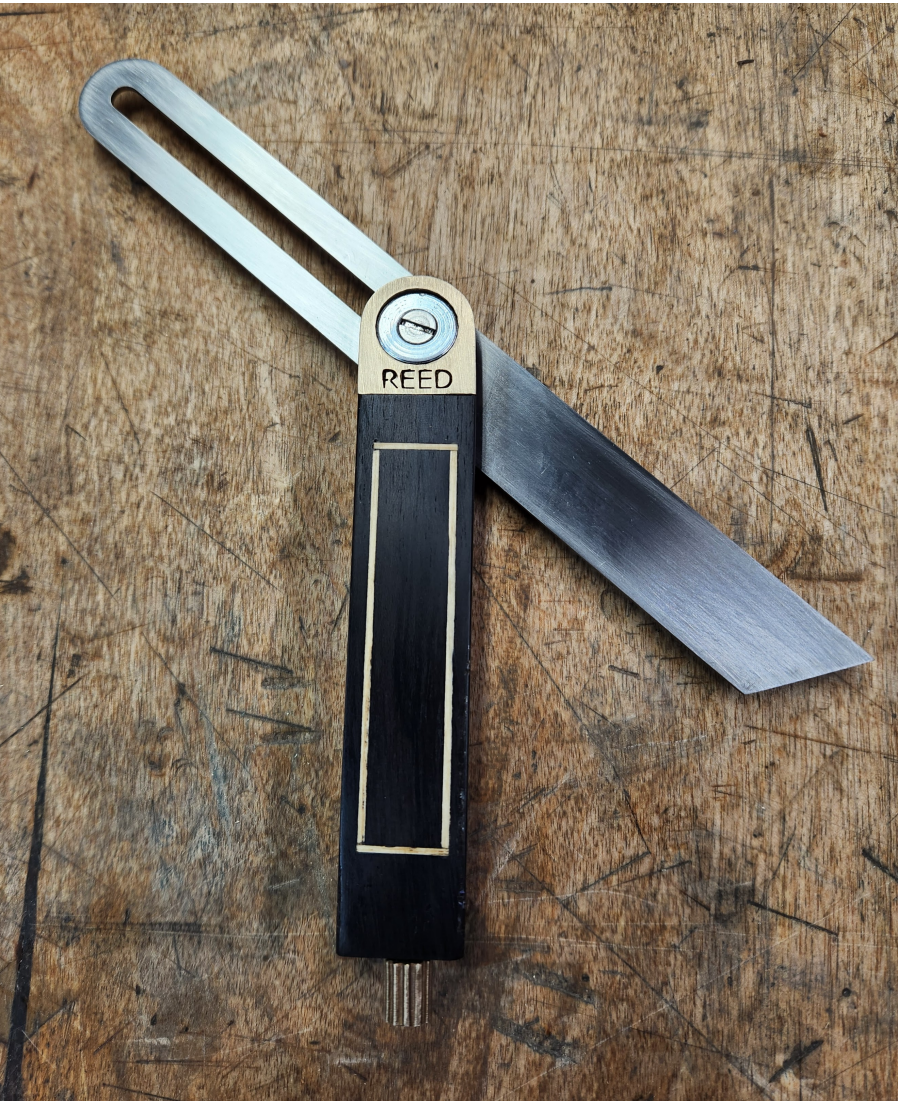

This is a kit from REED Planes to make a Bevel Gauge with Butt End Tension screw.

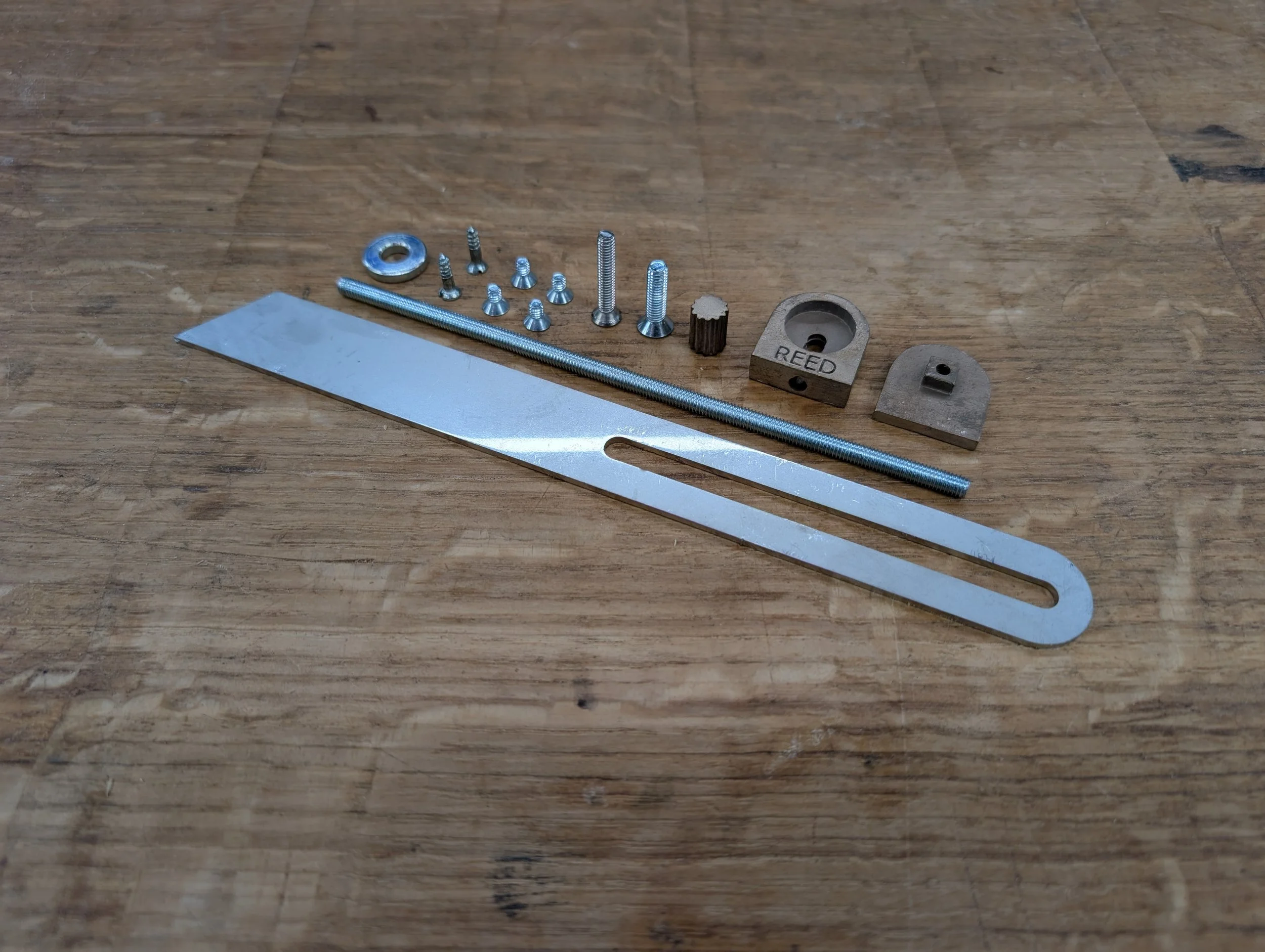

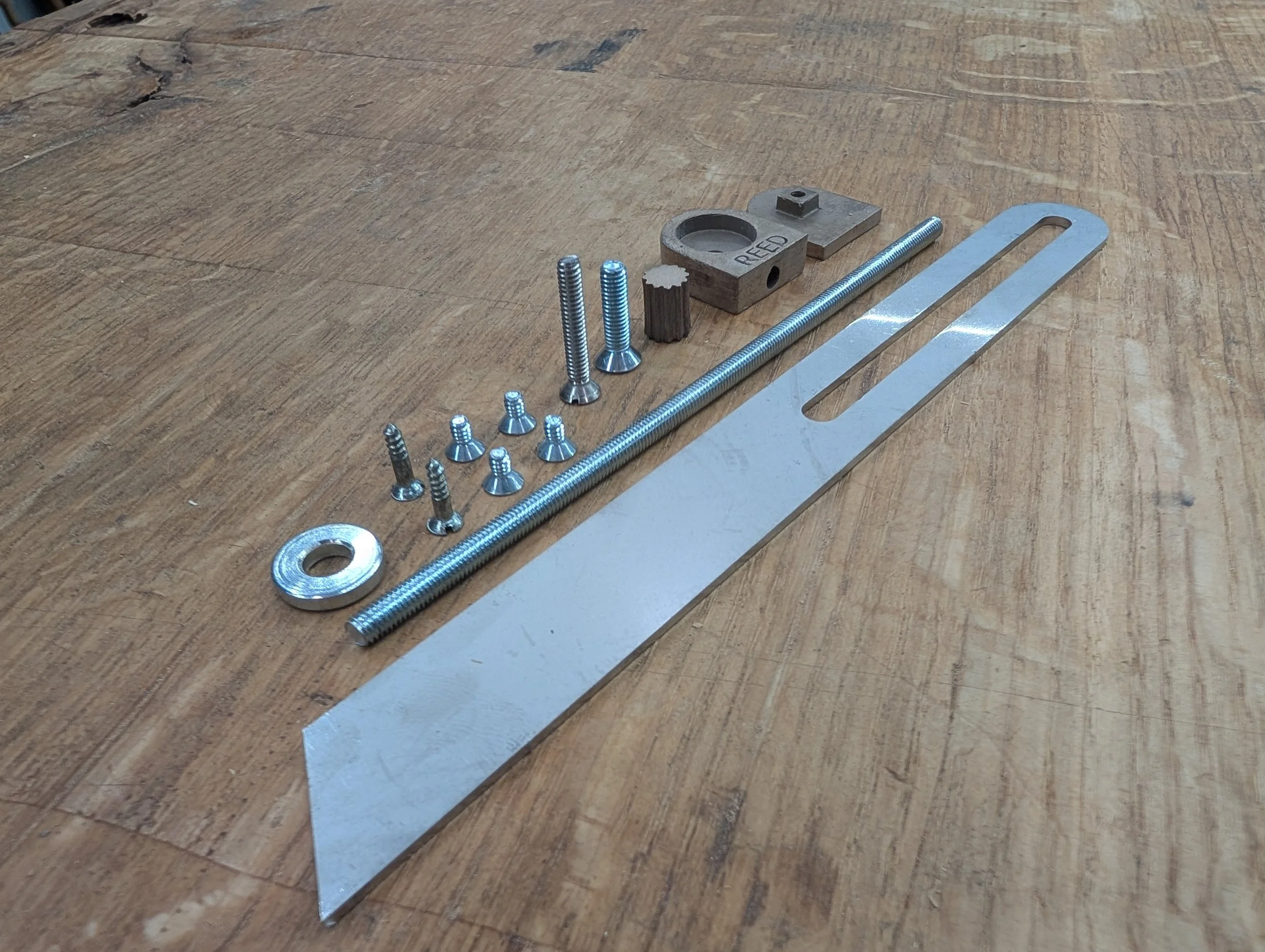

This kit includes

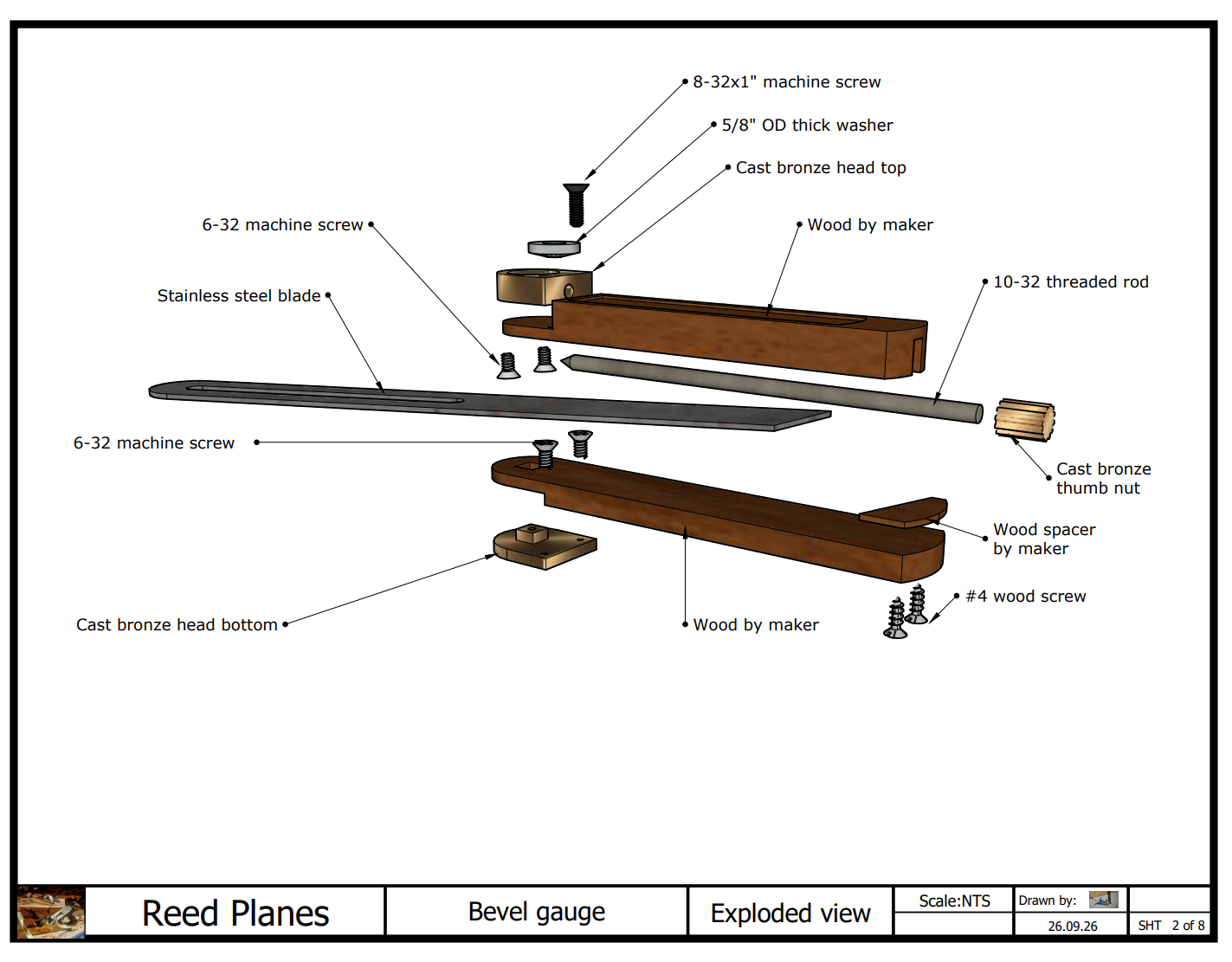

8 Page set of plans with diagrams and guides to making your own
1 beam
1 Long threaded rod

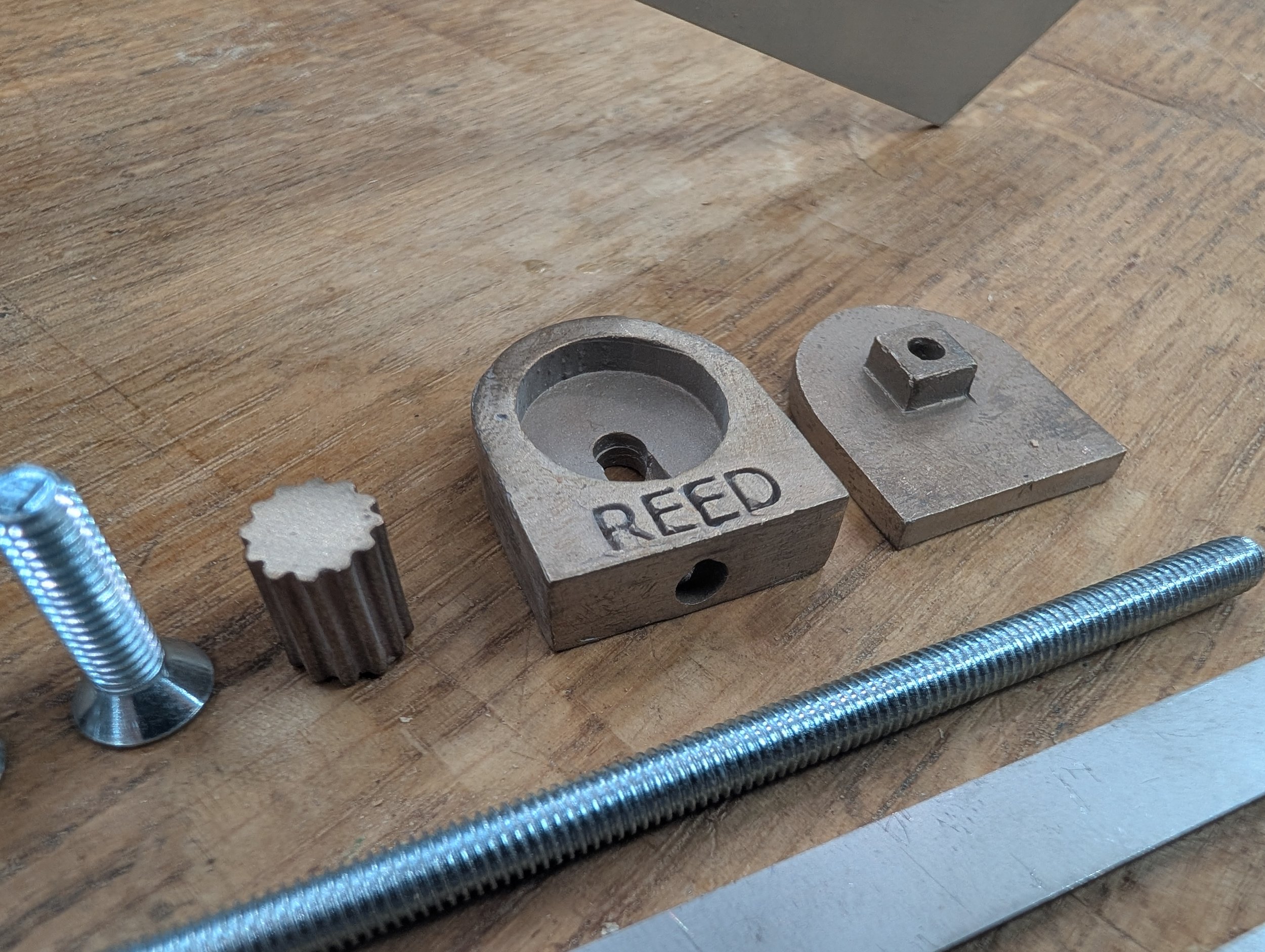

3 Cast Bronze parts

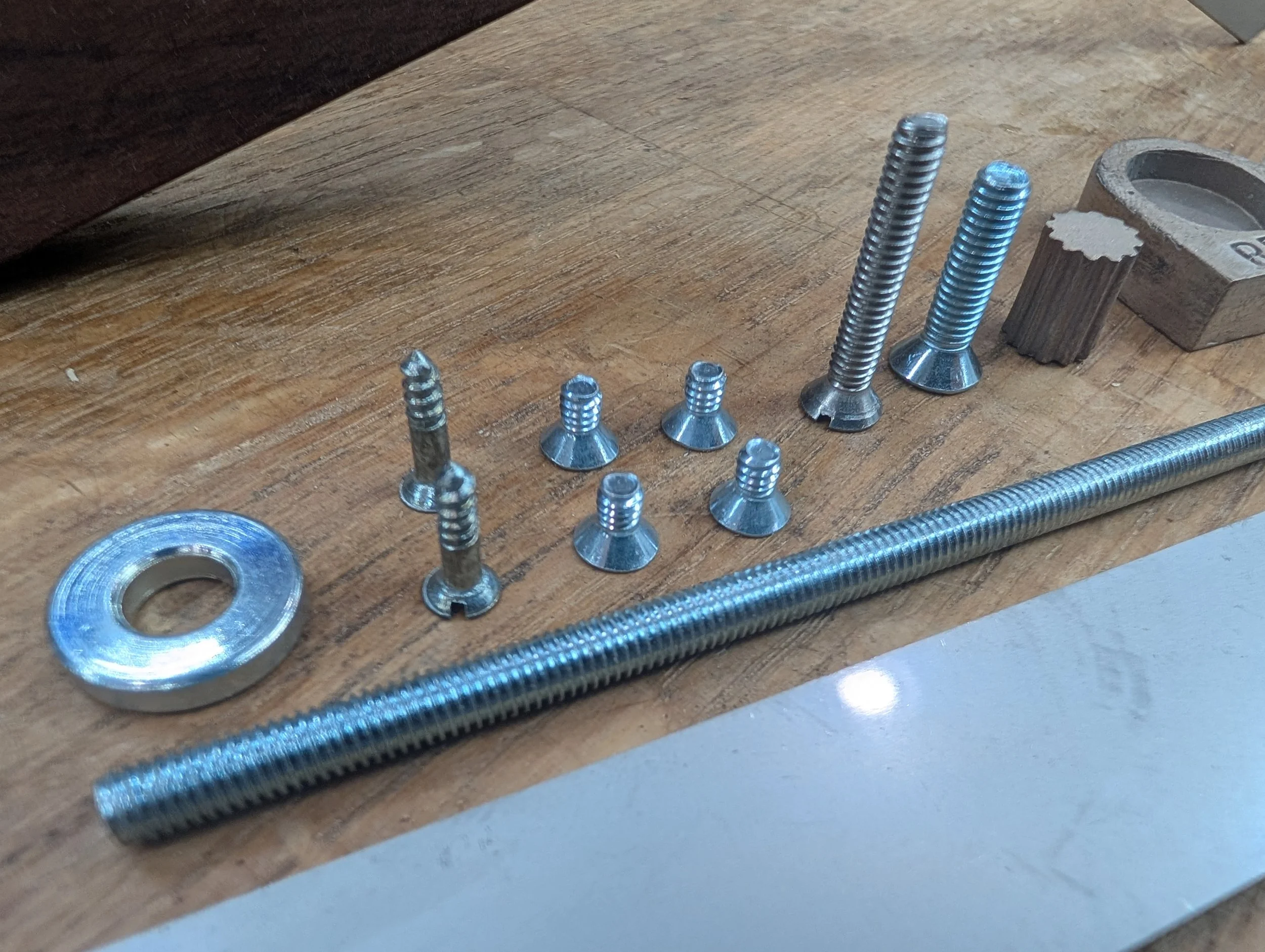

1 Flat head bolt for assembly
1 Flat head bolt for tensioning head
4 Flat head bolts for attaching Bronze heads
2 Wood screws for connecting sides together
1 Machined washer for tightening mechanism
The assembly requires tapping several different holes in the Bronze and wood. All wood and other connectors are supplied by the maker.
You can find the full build video of Wood By Wright making the bevel gauge here: https://youtu.be/ICIcFarWOIw
These parts are made by REED Planes and distributed by Wood By Wright. Feel free to contact either of us anytime with questions. James Wright: JamesWright@woodbywright.com Jeffrey Warshafsky: reedplanes@gmail.comA bit about REED Planes:
Reed Planes was developed from my frustrations with using Stanley planes and old, tired Norris planes. My goal was to create a hand plane that would solve the shortcomings of these planes as well as a way for them to be adjustable due to wear over time. I have adapted many of my improvements for replacement parts that can easily modify a Stanley hand plane.
